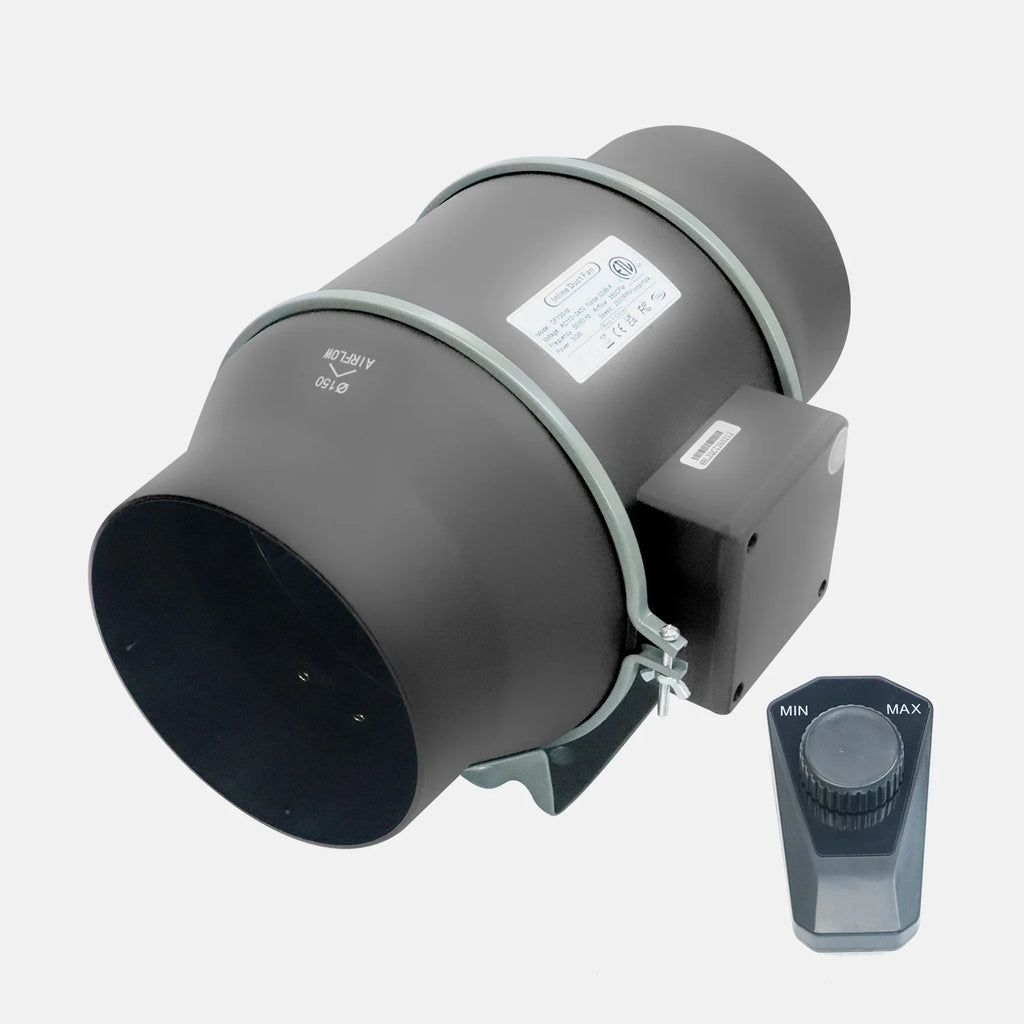

4″/100mm、6/150mm 、8/200mm Fan is suitable for industrial, home and garden ventilation applications and can help you maintain a healthy grow room. Ideal solution for multiple uses in residential and commercial ventilation
Advantages：
- Low noise level: The high-quality fan blades rotate smoothly and powerfully, helping to collect air flow and reduce noise output; noise below 28、32、42 decibels will not affect your work and life.
- Powerful Ventilation: This efficient blower has a fan speed of 2700、2500、2000 RPM and an airflow of 205、350 、553CFM. In-line duct ventilation fans can effectively circulate air for indoor ventilation and odor purification
- Adjustable speed: The external knob box can adjust the speed, allowing the fan to run at different speeds, and you can adjust it to the desired airflow level as needed.
Parameters
| Items | 4"/100mm Fan | 6"/150mm Fan | 8"/200mm Fan |
|---|---|---|---|
| Diameter of air inlet and outlet ducts | 98mm | 146mm | 196mm |
| AC Input Voltage | AC110-240V | AC110-240V | AC110-240V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Power | 30W | 50W | 70W |
| Speed | 2700RPM | 2500RPM | 2000RPM |
| Noise | 28dB-A | 32dB-A | 42dB-A |
| Air Volume | 205CFM | 350CFM | 553CFM |
| Power Cord | 3 coreX0.752×1.5M | 3 coreX0.752×1.5M | 3 coreX0.752×1.5M |
| Control method | External knob box speed adjustment | External knob box speed adjustment | External knob box speed adjustment |
| Net Weight | 1.722kg | 2.399kg | 3.239kg |
FAQ
Q: Which controller can be used with this Inline Fan?
A: It can only be used with the Smart Controller (Black One)
Q: Which filter can be used with the Upgrade Inline Fan?
A: It can only be used with the Upgrade Active Carbon Filter
Q: How can I build a complete ventilation system?
A: Pair the upgraded fan, upgraded filter, ducting, and clamps to build a complete ventilation system. Please ensure you choose the same size components for a smooth installation.
